Print Dispatching

Admin Web

To query jobs to be dispatched:

• Select ‘Velma’ from the Sponsor filter drop down (if not already selected)
• Select ‘Rendered’ from the Status filter drop down
• Date Filter - select Custom Range and look back a few days

To query jobs that are currently being re-queued or in a dispatched state.

• Select ‘Velma’ from the Sponsor filter drop down (if not already selected)
• Select ‘Dispatched’ from the Status filter drop down
• Date Filter - select Custom Range and look back a few days
• Anything in a dispatched state is currently going through processing to print Vendor.

To query jobs that are currently being sent to Amazing Mail:

• Select ‘Velma’ from the Sponsor filter drop down (if not already selected)
• • Select ‘Sending’ from the Status filter drop down
• Date Filter - select Custom Range and look back a few days

Detailed Workflow

Technologies

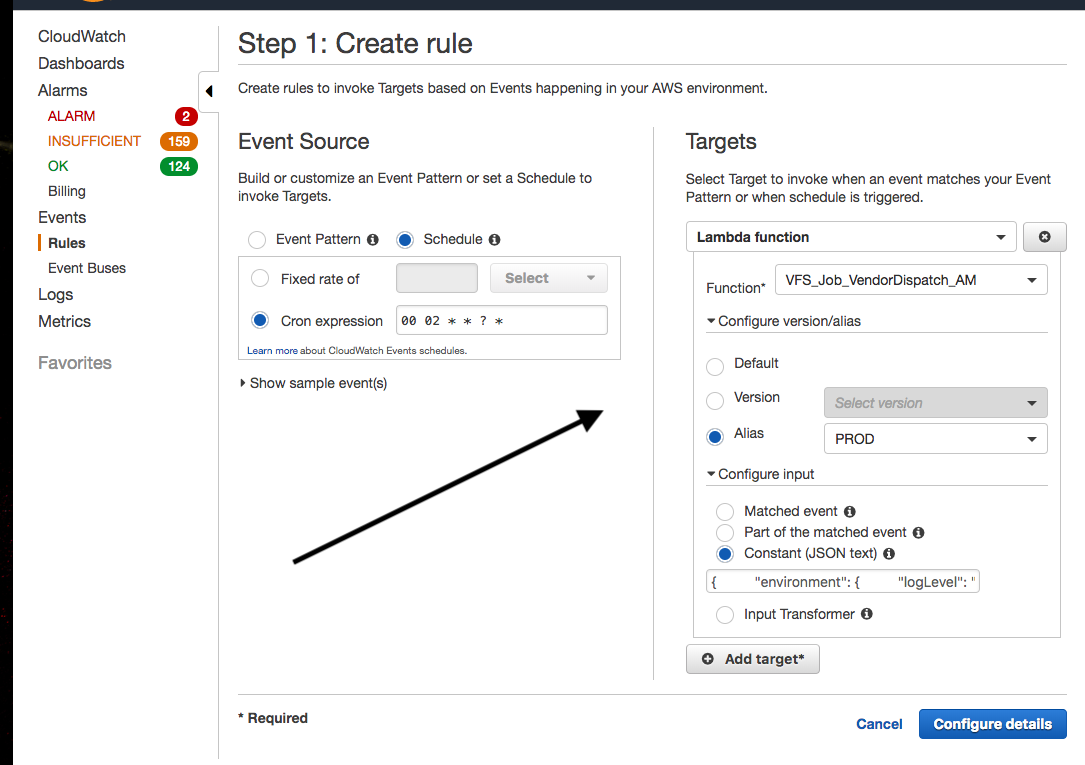

Figure 1

Figure 2

Figure 3

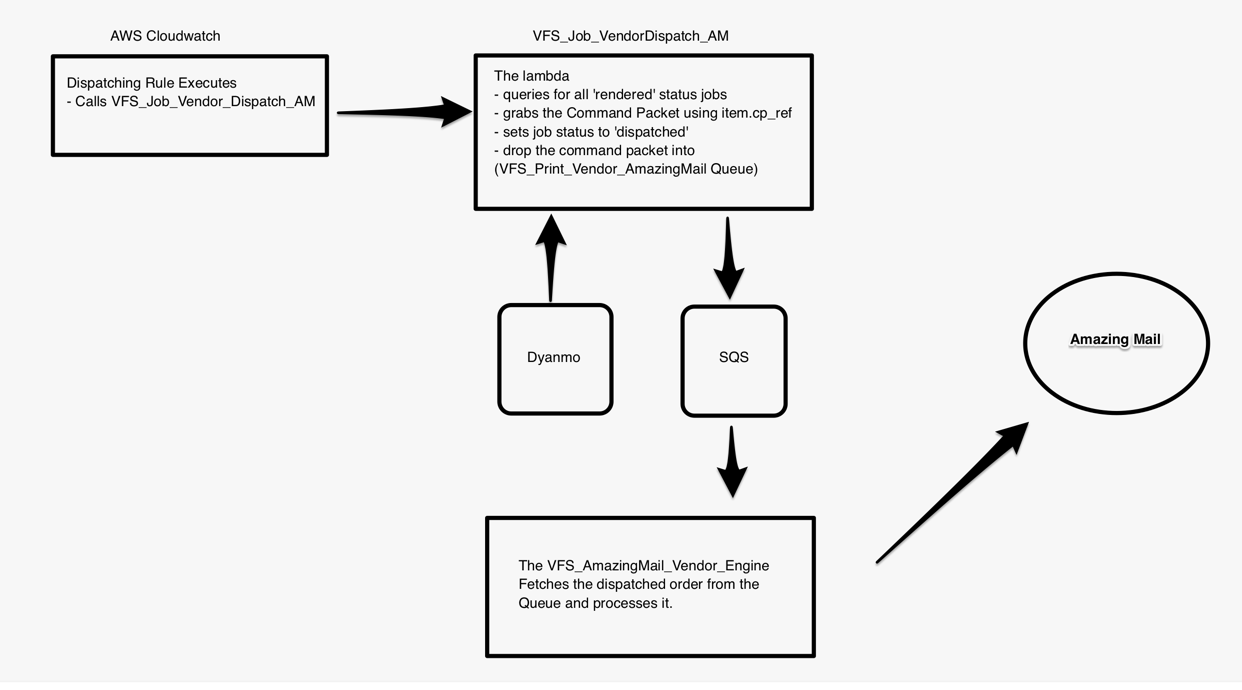

AWS Lambda (VFS_Job_VendorDispatch_AM)

• This lambda does the following:
  • Queries Dynamo for jobs in a ‘Rendered’ status
  • Once it gathers a list of those jobs, it iterates through them one by one doing the following:
    • For each job, it gets the job’s command packet using the Dynamo item.cp_ref property
    • It then dispatches that job
      • Dispatching Means:
        • Set the job status to ‘Dispatched’
        • Drop the command packet in the SQS (VFS_Print_Vendor_AmazingMail) Queue
  • The Amazing Mail Vendor Engine reads from that Queue

VFS Amazing Mail Vendor Engine

• The engine does the following:
  • Polls the VFS_Print_Vendor_AmazingMail Queue for jobs
  • Grabs a job in the form of a command packet (Also called a task) and starts to process it
  • Checks throttling logic (Explained below)
  • Submits the job to Amazing Mail for printing

Throttling Explained

• Due to VFS submitting jobs to Amazing Mail too fast we had to implement throttling
• How throttling works (it is based on a few values):
  • Throttling Interval
    • Throttle a job for ‘X’ seconds
    • Current Value = 60 Seconds
    • Located in the Engine Code (Private const THROTTLE_INTERVAL)
  • Throttling Limit
    • Only send ‘X’ at a time to the vendor Amazing Mail
    • Current Value = 5
    • Located in ETCD (etcdctl get /config/services/VFS.Engines/Vendor/throttleLimit/amazingmail)
  • Re-queueing Delay
    • A calculated value indicating a delay for dropping the job back in the queue
    • So a job gets dropped back into the queue but doesn’t show up for X seconds
    • Current Value = 60 seconds
    • Located in Vendor Engine Vendor Service isOverLimit function
• The simple explanation is:
  • Throttling allows us to only 5 jobs every 60 seconds to Amazing Mail
  • A list of jobs to be sent is created in REDIS and that list is check by the Vendor Engine
  • If the next job makes the list of of jobs bigger than 5 within 60 seconds that job will be re-queued
  • There is a 60 second delay on the re-queue
  • So if we have a 1000 jobs to send - at the throttled rate of 5 jobs per 60 seconds then it will take 3 hours to send those (UGGH)
• The detailed explanation is:
  • The Vendor Engine keeps a list (REDIS) of the last few jobs sorted by the dispatched date
    • List:
      • Job 1: 2017-01-01:6:00 PM - Will last 60 Secs
      • Job 1: 2017-01-01:6:03 PM - Will last 60 Secs
      • Job 1: 2017-01-01:6:05 PM - Will last 60 Secs
  • If the number of items in the list is > the 5 jobs / 60 secs the job will be re-queued with a 60 second delay
  • If the number of items in the list is < the 5 jobs / 60 secs the job is added to the list and dispatched
  • The size of the list will grow each time a job is dispatched and shrink each time a record in the list expires
  • The expiry time is 60 seconds (each redis record will go away in 60 secs)
  • The number of jobs Amazing Mail can handle is 5 / 60 Secs
  • Therefore if there is a batch of 1000
    • VFS will send 5 every minute
    • It will take 3 hrs to process all 1000 jobs
